Wheel well water tank 20 gallon


2 in stock

SKU: F986717 Categories: , Tag:

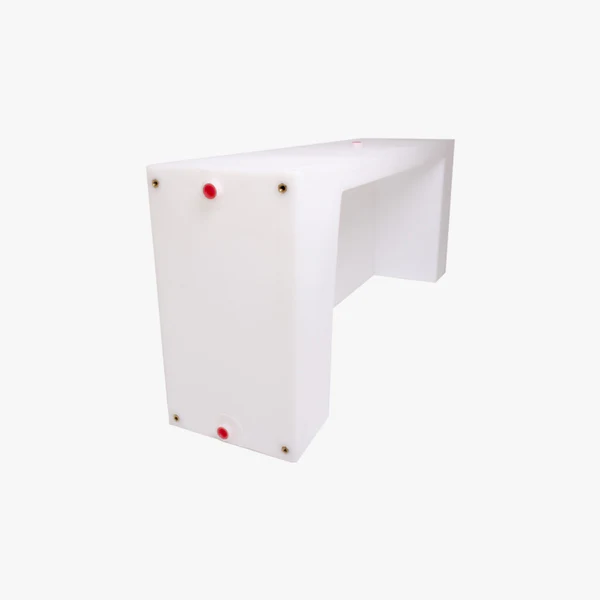

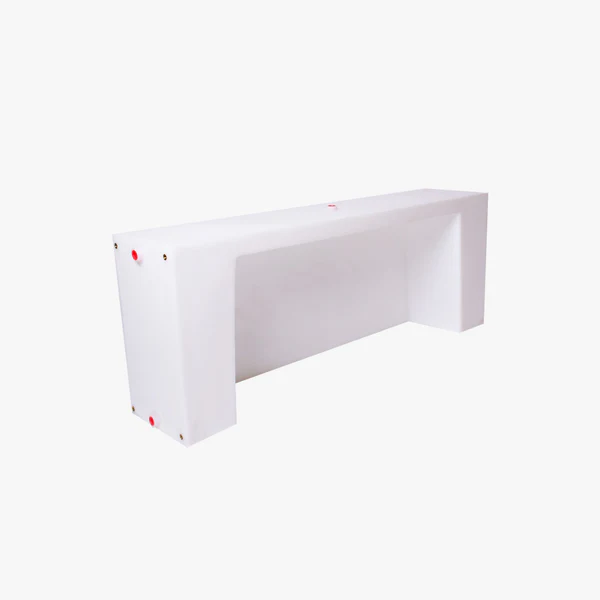

This 20 Gallon Wheel Well Water Tank is designed to save interior space while increasing safety by distributing weight onto the rear tires for optimal traction. The design is also naturally baffled to decrease water sloshing and can be easily installed on Sprinters, ProMasters and Transits.

***Tank may have excess plastic shards on the inside from the manufacturing process. We recommend to rinse out the tank before install to be sure.***


  • 20 Gallon capacity
  • BPA-Free
  • NSF/ANSI 61 Certified
  • Reversible: For both driver and passenger sides.
  • Naturally baffled to decrease water sloshing
  • Centers weight over the axle

– 1/2 in FNPT Fittings on both ends of the tank and one on top.

– Threaded inserts on both ends of the tank (5/16″-18)
– Inlet and outlet on front and back for universal installation on either passenger or driver side.

Compatible with Sprinters, Transits and ProMasters.
Not compatible with dually trucks

Kit Includes:

  • 1 – Wheel well water tank
  • 4 – Mounting brackets.
  • Specifications
  • Capacity: 20 gallons
  • Weight: 37 pounds
  • Length: 50 inches
  • Height: 19 inches
  • Width: 11 inches
