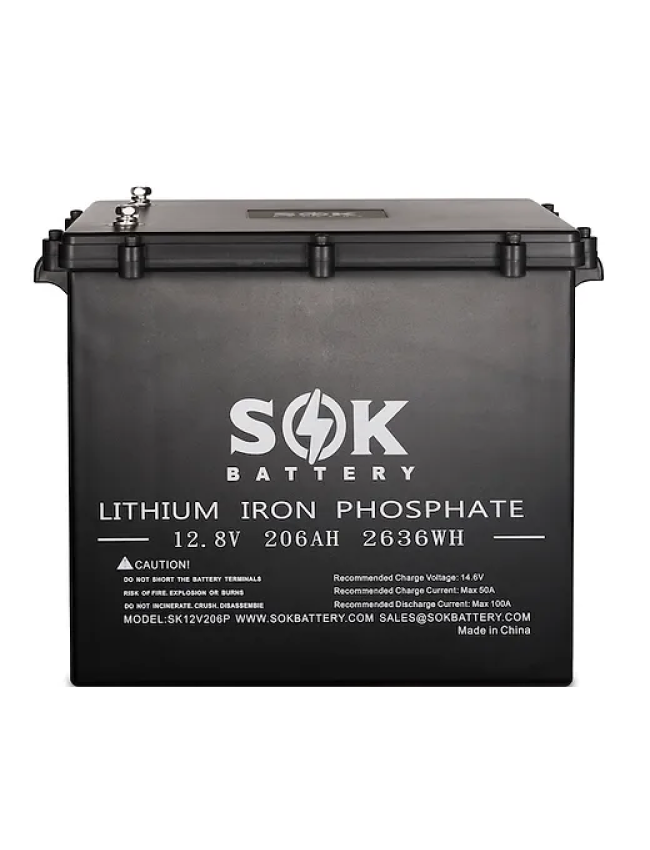

SOK 12V 206Ah LiFePO4 Battery with Smart BMS

The SOK SK12V206P is a 12V 206Ah LiFePO4 battery built for boats, RVs, camper vans, solar systems, and off-grid applications. It uses lithium iron phosphate cells with an integrated Smart Battery Management System (BMS) that protects the battery during charging and discharging.

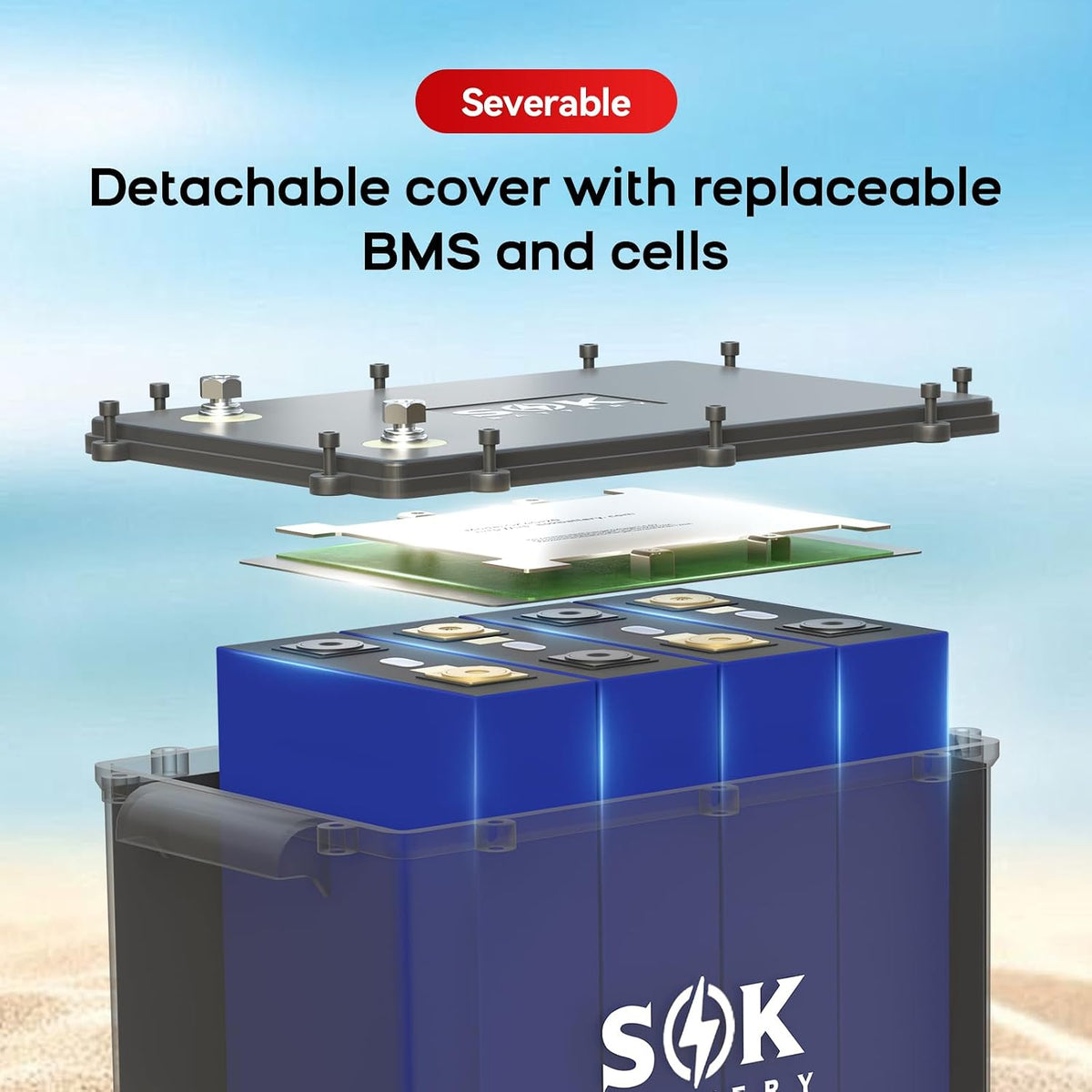

The battery has a detachable, serviceable cover that gives access to the BMS and individual cells for future maintenance. It supports series and parallel wiring, so up to four batteries can be connected in series for 24V, 36V, or 48V systems, or in parallel for extra capacity.

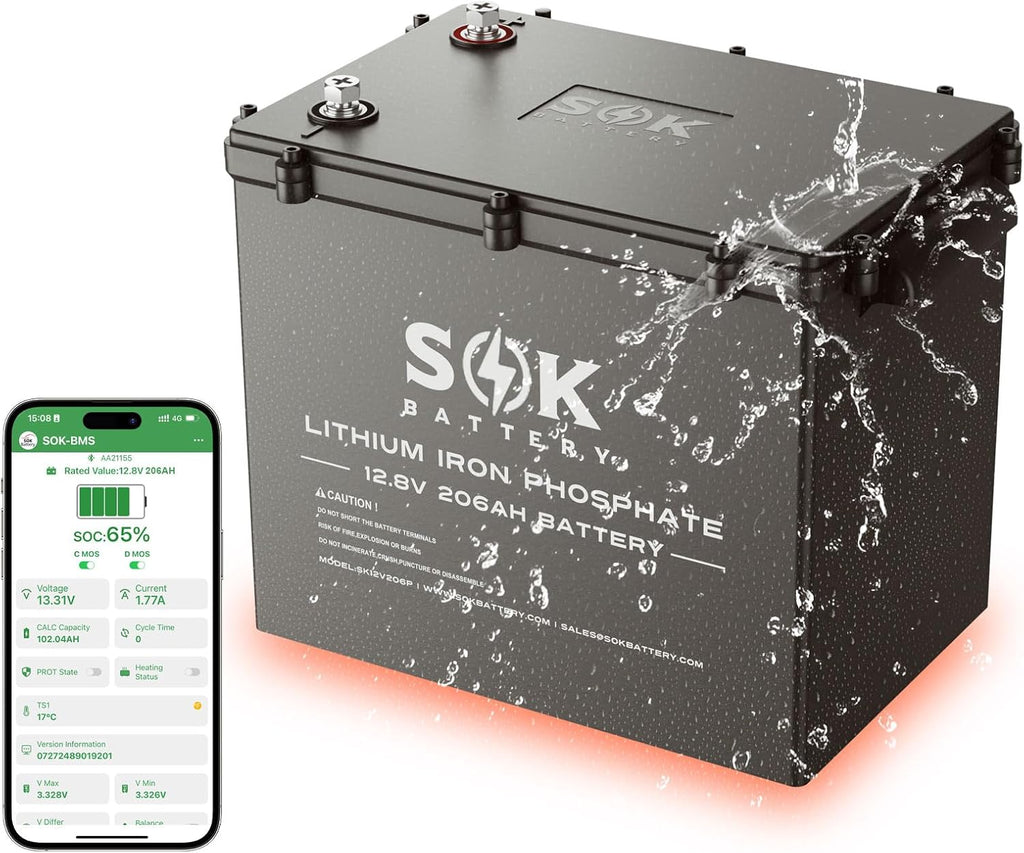

Smart Battery Management System

The built-in Smart BMS provides overcharge, over-discharge, over-current, and short-circuit protection, along with low- and high-temperature cut-off and automatic cell balancing.

Key Features

• 12V 206Ah LiFePO4 battery
• Smart Battery Management System (BMS)
• Detachable, serviceable cover with replaceable BMS and cells
• Supports series (up to 4 batteries) and parallel configurations
• 7-year warranty

Specifications

Charging

• Recommended Charge Current: 40A
• Maximum Charge Current: 70A
• Recommended Charge Voltage: 14.4–14.6V
• Maximum Batteries in Series: 4

Discharging

• Maximum Continuous Discharge Current: 170A
• Peak Discharge Current: 200A for 3 seconds
• Recommended Low-Voltage Disconnect: 11.2V
• BMS Discharge Cut-Off Voltage: Approx. 10.4V
• Reconnect Voltage: >11.6V

Physical

• Terminal Type: M8 / 5/16" lugs
• Weight: 48 lbs

Operating Temperatures

• Discharge Temperature: -20°C to 60°C (-4°F to 140°F)
• Charge Temperature: 0°C to 45°C (32°F to 113°F)
• Recommended Storage Temperature: -5°C to 35°C (23°F to 95°F)

Certifications

• Battery Cells: UL1973 & IEC62619

Built for Marine, RV & Off-Grid Power

The SK12V206P is a straightforward upgrade from lead-acid to lithium for house banks, RV and camper electrical systems, solar installations, and off-grid setups. Model: SK12V206P.
