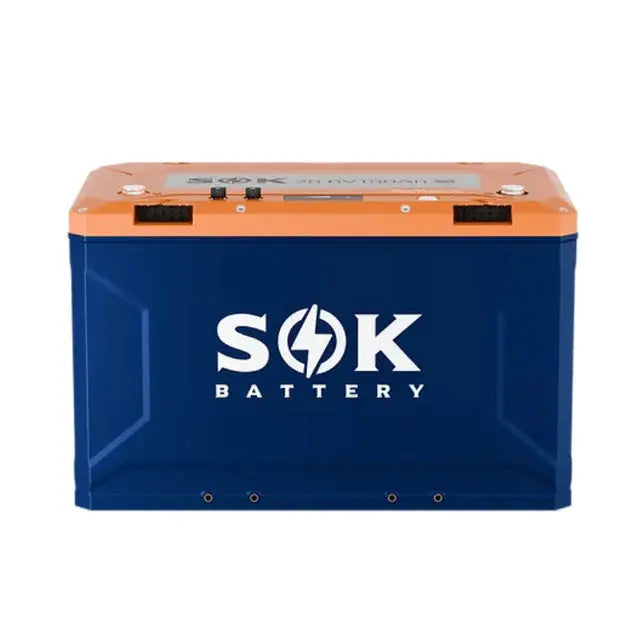

SOK 150Ah 24V LiFePO4 Battery with Bluetooth and Heater

The SOK SK24V150PH is a 24V 150Ah LiFePO4 battery delivering 3,840Wh of lithium power for marine, RV, camper van, off-grid, and backup power systems. It combines a self-heating system, Bluetooth 5.1 monitoring, Victron CAN communication, and an IP67-rated enclosure in one 24V battery.

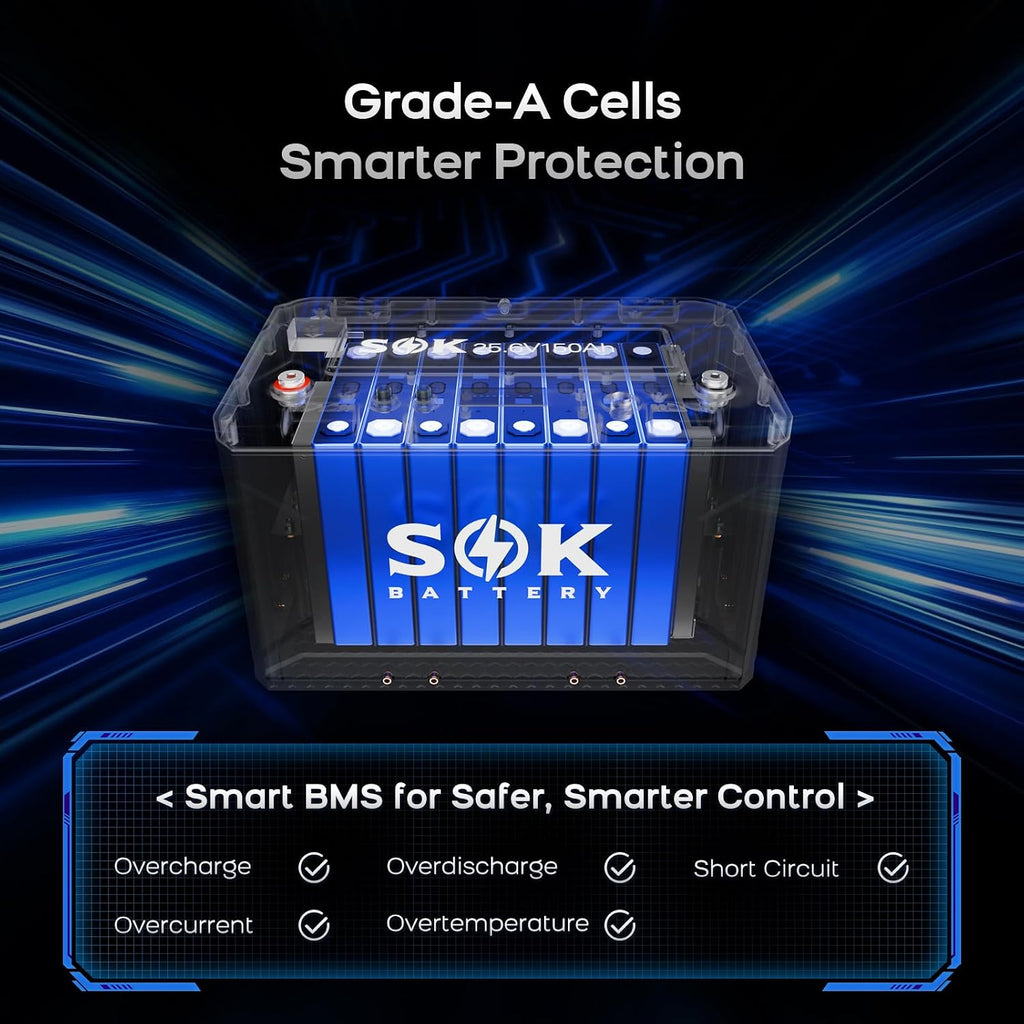

With 200A continuous discharge and an integrated smart BMS, it suits larger inverter systems and high-demand electrical setups. Batteries can be connected in series or parallel when additional voltage or capacity is needed.

Key Features

• 24V 150Ah LiFePO4, 25.6V nominal voltage, 3,840Wh usable capacity
• Built-in self-heating to support charging in cold weather
• Victron CAN communication, including compatibility with Cerbo GX-based systems
• Bluetooth 5.1 monitoring from a compatible iOS or Android device
• 200A continuous discharge, 500A peak discharge for up to 10 seconds
• IP67-rated PC+ABS enclosure
• Integrated gas aerosol fire suppression
• Expandable design: up to 2 batteries in series (48V) or 10 in parallel
• Integrated ON/OFF switch with external alarm or relay support

Ideal for Marine, RV & Off-Grid Power

The SK24V150PH suits boats and marine electrical systems, camper vans, RVs and motorhomes, cabins and off-grid properties, solar energy storage, backup power systems, and Victron Energy electrical systems.

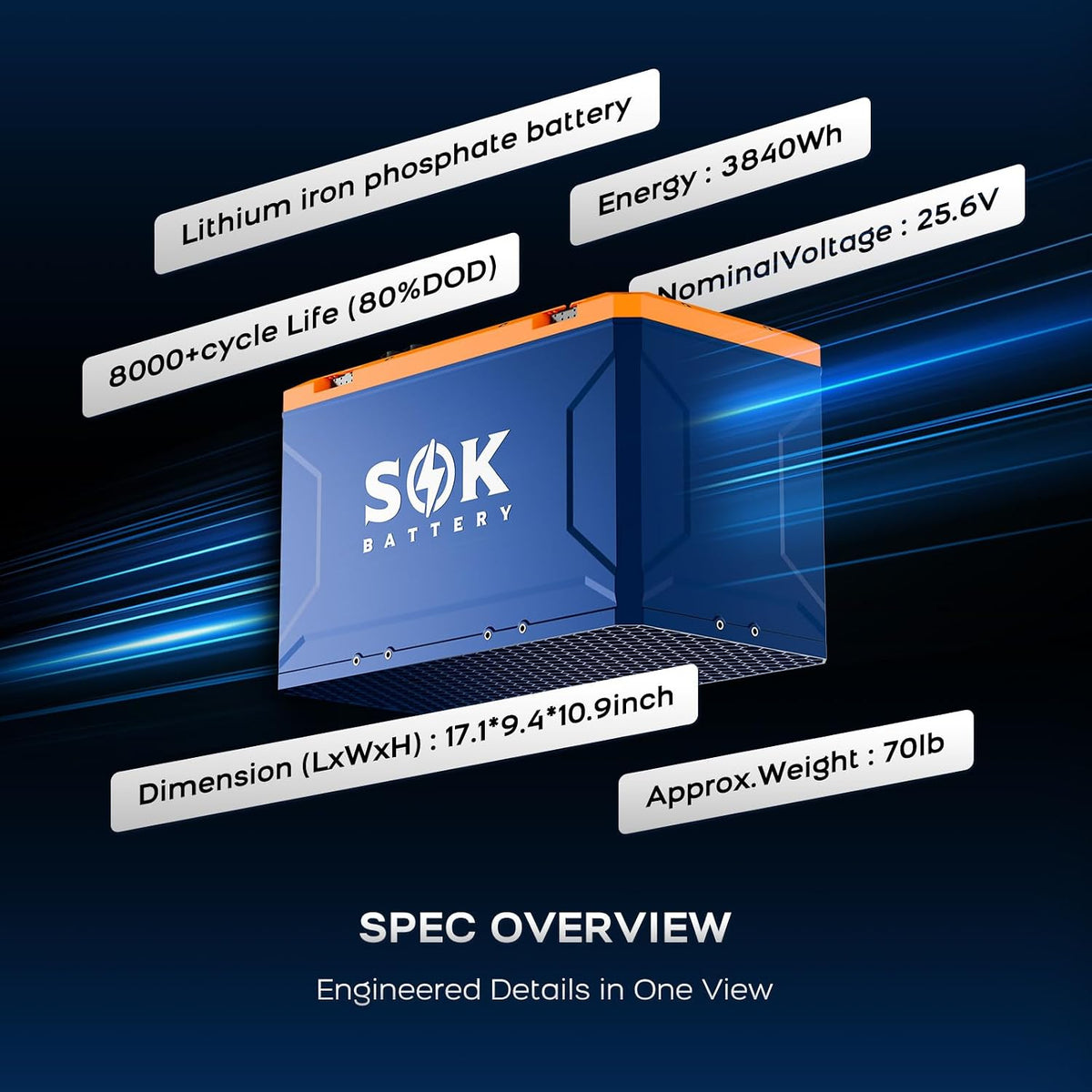

Technical Specifications

Model: SK24V150PH
Battery Chemistry: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 150Ah
Energy: 3,840Wh
Self-Discharge: <3% per month
Cell Specification: 3.2V 150Ah
Cell Cycle Life: 4,000+ cycles

Charging

Recommended Charge Current: 150A
Maximum Charge Current: 200A
Recommended Charge Voltage: <29.2V
BMS Charge Cut-Off Voltage: >30V or 3.8V per cell
Reconnect Voltage: <27.6V
Balancing Voltage: 3370mV and >20mV during charging

Discharging

Maximum Continuous Discharge: 200A
Peak Discharge: 500A for 10 seconds
Recommended Low-Voltage Disconnect: ≥21V
BMS Discharge Cut-Off Voltage: <20V
Reconnect Voltage: >24V
Short-Circuit Protection: 1200A / 300μs

System Expansion

Maximum Batteries in Series: 2
Maximum Batteries in Parallel: 10

Temperature Ratings

Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Charge Temperature: -4°F to 122°F (-20°C to 50°C), with integrated heating
Storage Temperature: 23°F to 95°F (-5°C to 35°C)
BMS High-Temperature Cut-Off: 167°F (75°C) discharge / 158°F (70°C) charge
Reconnect Temperature: 149°F (65°C) discharge / 140°F (60°C) charge

Mechanical Specifications

Dimensions: 17.1" × 9.4" × 10.9"
Approximate Weight: 70 lb
Terminal Type: M8
Terminal Torque: 80–100 in-lb (9–11 N·m)
Case Material: PC+ABS
Enclosure Protection: IP67

Compliance

Cell Certification: IEC 62619

Built for Victron-Powered Systems

For a Victron Energy marine, RV, camper van, or off-grid electrical system, the SK24V150PH offers high-capacity LiFePO4 storage with CAN communication and Bluetooth monitoring in a rugged, self-heating package. It suits both upgrading an existing battery bank and building a new 24V system.
