Victron BlueSolar MPPT 250/100-Tr VE.Can Solar Charge Controller (UL 1741)

The Victron BlueSolar MPPT 250/100-Tr VE.Can is a high-capacity solar charge controller designed for larger marine, RV and off-grid power systems. Its ultra-fast Maximum Power Point Tracking technology continuously adjusts to changing sunlight conditions, helping your solar array produce as much usable energy as possible while supporting efficient, adaptive battery charging.

With a maximum PV open-circuit voltage of 250V and charging output of up to 100A, this controller supports 12V, 24V, 36V and 48V battery systems. The Tr model uses screw terminals for PV connections, while integrated VE.Can communication allows multiple compatible Victron devices to be connected to the same network and monitored through a compatible GX device.

Unlike the SmartSolar version, this BlueSolar model does not have Bluetooth built in. Local Bluetooth monitoring and configuration can be added using a compatible Victron VE.Direct Bluetooth Smart dongle. The optional SmartSolar Control Display can also be installed directly on the controller for convenient system monitoring and configuration.

Certified to UL 1741, the BlueSolar MPPT 250/100-Tr VE.Can provides dependable solar charging, flexible system integration and comprehensive electronic protection for demanding power systems.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 250V
• Maximum battery charging current of 100A
• Supports 12V, 24V, 36V and 48V battery systems
• VE.Can connectivity for system communication and monitoring
• VE.Direct communication port
• Screw-terminal PV connections
• Programmable charging algorithm

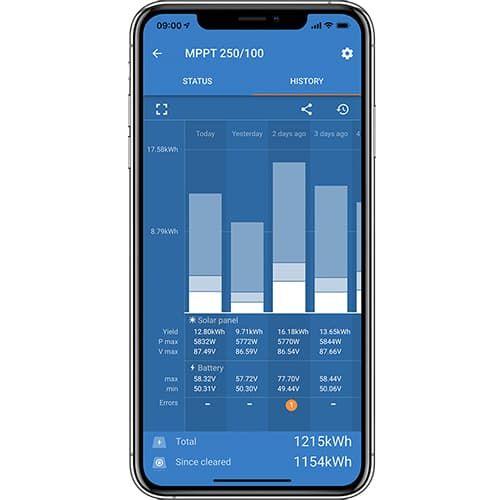

• Compatible with Victron GX monitoring devices
• Optional plug-in display support
• Optional Bluetooth connectivity with a VE.Direct Bluetooth Smart dongle
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Model: BlueSolar MPPT 250/100-Tr VE.Can
• Article number: SCC125110441
• Battery voltage: 12V, 24V, 36V or 48V
• Maximum charge current: 100A
• Maximum PV open-circuit voltage: 250V
• Rated PV power at 12V: 1,450W
• Rated PV power at 24V: 2,900W
• Rated PV power at 36V: 4,350W
• Rated PV power at 48V: 5,800W
• Maximum efficiency: 99%
• PV connection type: Screw terminals
• Communication: VE.Can and VE.Direct
• Bluetooth: Not built in; optional dongle required
• Dimensions: 216 × 295 × 103 mm
• Weight: 4.5 kg
• Safety standard: Certified to UL 1741
