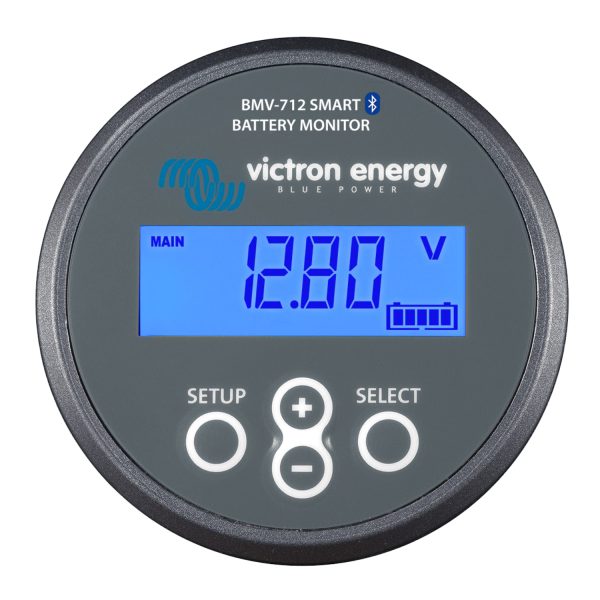

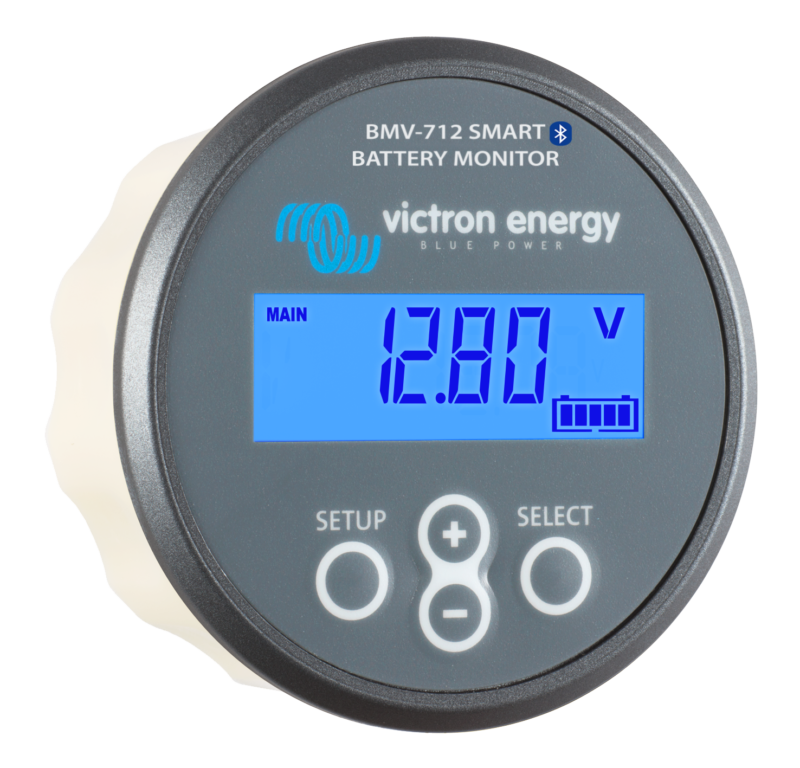

Victron BMV-712 Smart Battery Monitor with Bluetooth

Monitor your battery system with confidence using the Victron BMV-712 Smart Battery Monitor. Designed for boats, RVs, off-grid cabins, and solar power systems, the BMV-712 provides accurate, real-time battery information through its easy-to-read display and built-in Bluetooth connectivity.

Using the VictronConnect app, you can wirelessly monitor battery performance, adjust settings, review historical data, and install firmware updates directly from your smartphone or tablet.

Key Features

• Built-in Bluetooth for wireless monitoring with the VictronConnect app
• Displays battery voltage, current, power, amp-hours consumed, and state of charge
• Calculates remaining battery runtime based on current power consumption
• Includes a 500A quick-connect precision shunt
• VE.Direct communication port for integration with compatible Victron Energy products
• Programmable visual and audible alarms
• Programmable relay for generator start or automatic load disconnect
• Wide operating voltage range from 9.5V to 95V
• High current measurement resolution of 0.01A (10mA)
• Stores historical battery data to monitor battery usage and long-term health
• Compatible with lithium (LiFePO₄), AGM, gel, and flooded lead-acid batteries

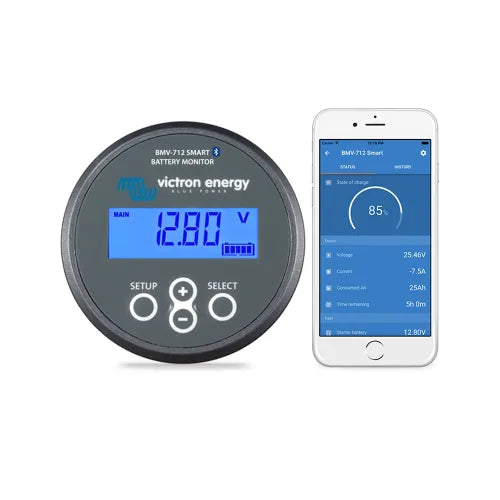

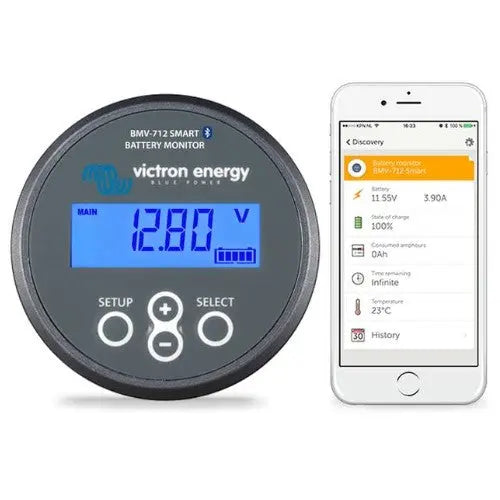

Built-In Bluetooth

With integrated Bluetooth, the BMV-712 is ready for modern battery monitoring. Connect wirelessly using the VictronConnect app to:

• View live battery data
• Monitor voltage, current, and state of charge
• Customize monitor settings
• Review historical performance
• Install firmware updates

No additional Bluetooth accessories are required.

Easy Installation

Installation is quick and straightforward.

All electrical connections are made directly to the included 500A quick-connect shunt, which connects to the display using the supplied 10-metre RJ12 cable.

Included in the box:

• BMV-712 Smart Battery Monitor
• 500A quick-connect shunt
• 10 m RJ12 communication cable
• 2 m fused battery cable
• Round and square front bezels
• Rear mounting ring
• Front mounting screws

Midpoint Voltage Monitoring

For battery banks connected in series, midpoint voltage monitoring helps detect battery imbalance before it becomes a costly problem. Early warnings can identify weak or failing batteries, helping extend battery bank life.

For maximum performance in series-connected lead-acid battery banks, Victron recommends pairing the BMV-712 with a Victron Battery Balancer.

Ultra-Low Power Consumption

The BMV-712 draws exceptionally little power, making it an excellent choice for lithium battery systems where preserving every amp-hour matters.

Current consumption:

• Approximately 1mA at 12V
• Approximately 0.8mA at 24V

Its extremely low standby power helps prevent unnecessary battery drain during storage.

Smart Protection Features

The built-in bi-stable alarm relay allows the monitor to control external devices without continuously consuming power.

Configure the relay to:

• Disconnect non-essential loads
• Start a generator automatically
• Trigger alarms when battery limits are reached

Ideal For

The Victron BMV-712 Smart Battery Monitor is ideal for:

• Boats and marine electrical systems
• RVs and motorhomes
• Off-grid cabins
• Solar power systems
• Camper vans
• Backup battery systems
• Lithium battery installations

Stay informed about your battery's performance with accurate monitoring, wireless connectivity, and trusted Victron Energy reliability.
